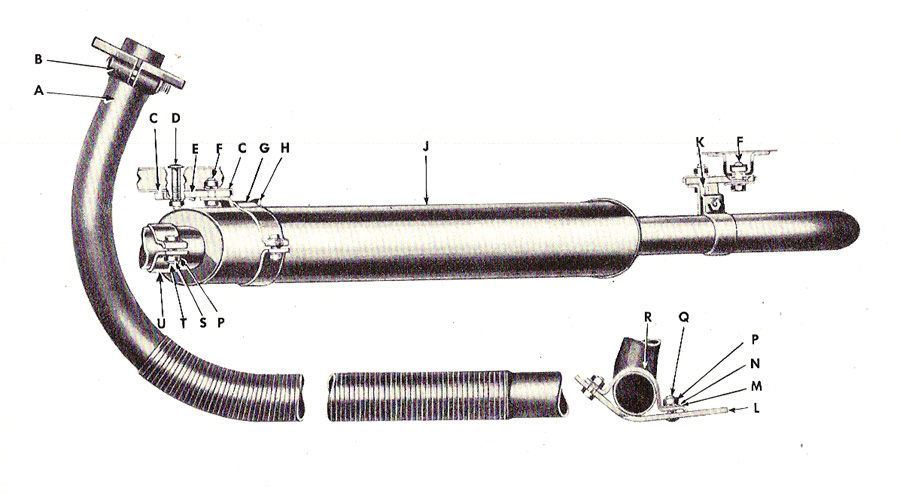

Key Reférence Libellé Qté * Willys Ford Hotchkiss
B WO630526 Bride fix tube echap 1er mod sur collect 1 50 € HT
K WOA6119 Collier fixation arriere du pot 1 8 € HT 5 € HT
G WOA5753 Collier ovale fixation du pot 1 10 € HT 5 € HT
WOA655 Collier rond fixation du pot early 2 7 € HT
U WO636004 Collier serrage pot sur tube 1 8 € HT 5 € HT
R WOA1300 Demi collier fix tube / plaque blindage 1 5 € HT 2.2 € HT
WO53289 Ecrou 3/8-16 1 0.25 € HT
WO53037 Ecrou 5/16-18 2 0.2 € HT
WOA1532 Ecrou 5/16-24 7 0.2 € HT
WO52542 Ecrou vis fix tube d'echap/coll 3/8-24 2 0.25 € HT
WO332515 Goujon fix tube d'echap sur collecteur 1 2.7 € HT
WOA8401 Kit fixation echappement ovale 1 32 € HT 26 € HT
KIT ECH 2 Kit fixation echappement rond 1 35 € HT
C WO638058 Plaque renfort silentbloc caoutchouc 4 1.3 € HT
H WOA657 Plaque support collier ovale 1 4 € HT 2.6 € HT
WO5010 Rondelle frein 3/8 1 0.2 € HT
WO51833 Rondelle frein 5/16 10 0.15 € HT
WOA1533 Rondelle plate 5/16 s.a.e 1 0.25 € HT
WO5437 Rondelle plate 5/16 u.s.s 2 0.25 € HT
J WOA6118 Silencieux echappement (type ovale > 143507) 1 75 € HT 63 € HT
WOA1146 Silencieux echappement (type rond < 143507) 1 60 € HT
E WOA658 Silentbloc caoutchouc 2 2 € HT
A WOA1296 Tuyau flexible d'echappement 1 60 € HT
A WOA10199 C Tuyau flexible d'echappement copie us 1 70 € HT
A WOA10199 Tuyau flexible d'echappement origine 1 100 € HT
Q WO52983 Vis col carre fix demi collier 1 0.8 € HT
D WO52372 Vis col carre fix silentbloc av/caisse std 1 0.8 € HT
WO51523 Vis fix demi collier 5/16-18 x 3/4 1 0.5 € HT
T WO5922 Vis fix pot/tube 5/16-24 x 1"1/8 (t) 2 0.7 € HT
F WO50929 Vis fix silentbloc 5/16-24 x 7/8 (f) 3 0.5 € HT
WO50878 Vis fix tube echap/coll 3/8-24 x 1"3/8 1 0.8 € HT
WO51658 Vis fix woa 5753 5/16-24 x 1"1/2 (v) 1 0.7 € HT
WO6486 Vis serrage bride 3/8-16 x 2"1/4 1 1 € HT
T WO53131 Vis serrage collier pot/tube (t) 2 0.7 € HT
* Nombre de pièces nécessaires dans le groupe désigné.
Attention tous les prix sont unitaires et hors taxes.
